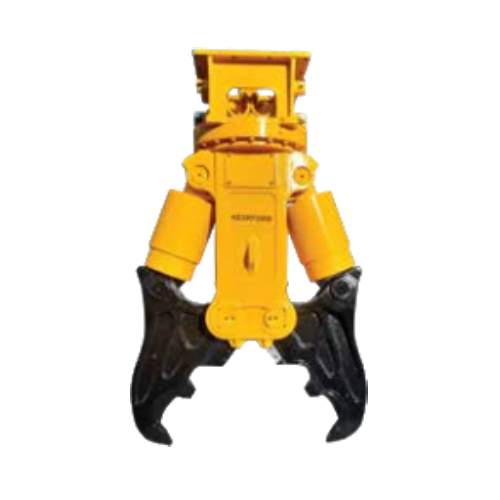

| KES FC08D | KES FC15D | KES FC20D | |
|---|---|---|---|
| Outline Dimension A | 1155mm (45.47 inch) | 1815mm (71.45 inch) | 2008mm (79.05 inch) |
| Outline Dimension B | 550mm (21.65 inch) | 850mm (33.46 inch) | 1000mm (39.37 inch) |
| Outline Dimension C | 240mm (9.45 inch) | 420mm (16.53 inch) | 480mm (18.90 inch) |
| Outline Dimension D | 486mm (19.13 inch) | 662mm (26.02 inch) | 732mm (28.82 inch) |
| Weight | 536kg (1181.7 lb) | 1895kg (4177.8 lb) | 2550kg (5621.8 lb) |
| Shear Working Pressure | 176.52–245 bar (2560–3556 psi) | 294–343 bar (4267–4978 psi) | 294–343 bar (4267–4978 psi) |
| Shear Working Flow | 50–100 l/min (13.20 gal/min) | 140–240 l/min (37–63.40 gal/min) | 180–240 l/min (47.55–63.40 gal/min) |
| Rotating Working Pressure | 59–88 bar (853–1280 psi) | 137–157 bar (1991–2277 psi) | 137–157 bar (1991–2277 psi) |
| Rotating Working Flow | 30–50 l/min (7.92–13.20 gal/min) | 40–60 l/min (10.56–15.85 gal/min) | 40–60 l/min (10.56–15.85 gal/min) |
| Cutting Oil Port | G3/4” | G1” | G1” |
| Rotating Oil Port | G3/8” | G3/8” | G3/8” |
| Suitable Carrier | 5–10 ton (11023–22046 lb) | 17–25 ton (37478–55115 lb) | 26–35 ton (57320–77162 lb) |
| Working Mode | Mechanical or hydraulic type | ||
